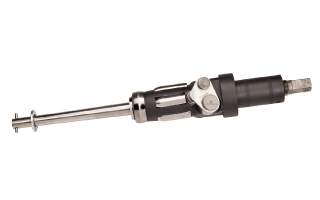

4480 Series Specifications
Tube OD Range
1.500” to 3.000”
(38.1 – 76.2mm)
Spares & Accessories
Mandrel
Front Square Drive Mandrel:
Recommended in applications where space is limited and tubes must be re-rolled from behind the boiler.
Expanding Roll Set:
Includes 3 or 4 overlapping rolls (depending upon expander size) and 1 expanding roll
Guide Roll
Bead Roll
Grease Gun (4480-20-26) / Grease (4480-20-30)
Bead Coolant
Electric and Pneumatic Rolling Motors
Expander Part Numbers
4480-1512, 4480-1513, 4480-1514, 4480-2010, 4480-2011, 4480-2012, 4480-2013, 4480-2510, 4480-2511, 4480-2512, 4480-2513, 4480-3010, 4480-3011, 4480-3012
Bead Roll Part Numbers
4480-15012, 4480-15013, 4480-15014, 4480-20010-011, 4480-20010-011, 4480-20012-013, 4480-20012-013, 4480-25010-011, 4480-25010-011, 4480-25012-013, 4480-25012-013, 4480-30010-011, 4480-30010-011, 4480-30012
Guide Roll Part Numbers
4480-15112, 4480-15113, 4480, 15114, 4480-20110, 4480-20111, 4480-20112, 4480-20113, 4480-25110, 4480-25111, 4480-25112, 4480-25113, 4480-30110, 4480-30111, 4480-30112
Expanding Roll Set Part Numbers
4480-1500, 4480-2000, 4480-2500, 4480-3000
Mandrel Part Numbers
4480-15-02, 4480-20-02, 4480-25-02, 4480-30-02
Front Drive Square Mandrel Part Numbers
4480-20-02FS, 4480-25-02FS, 4480-30-02FS
