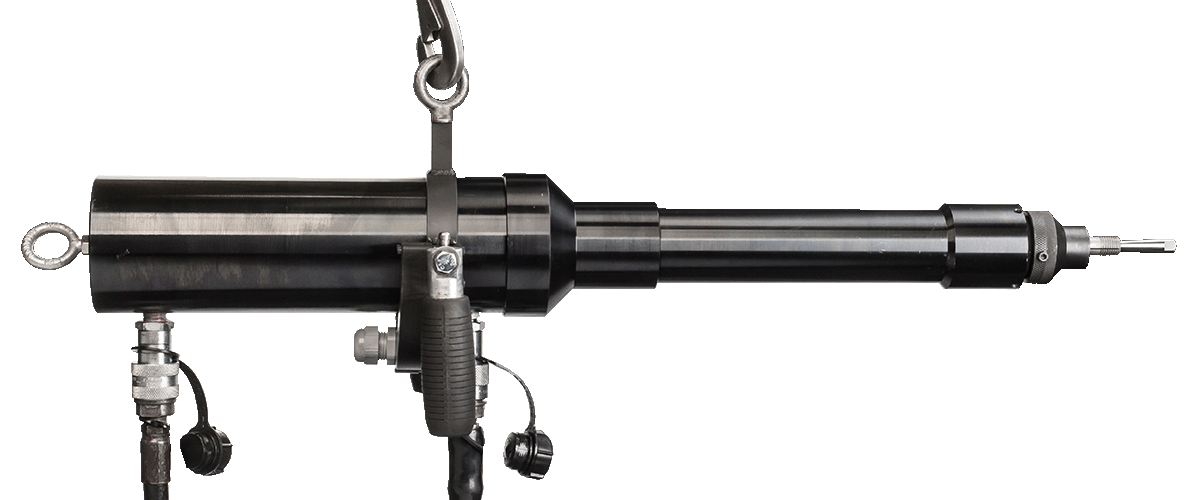

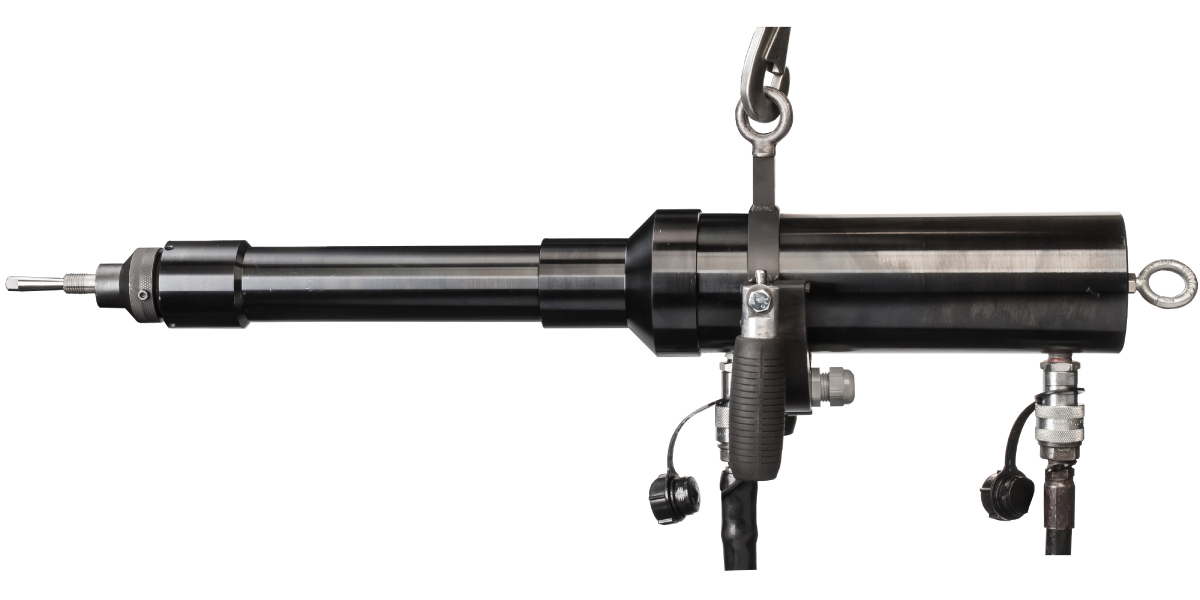

Offering the gripping power of a spear with the speed and convenience of a collet, the Super Collet Tube Puller features collet teeth that are designed using the same principles as the Elliott TT Spear. The puller is powered by an electric or pneumatic hydraulic pump and provides up to 25 tons of pulling capacity. Available in 2 pulling heads to cover tube sizes from ½” up to 2-1/2”.
Tube Size Range: 0.50″ to 2.50″ (12.70 – 63.50mm)
Type: Tube Puller
Application: Boiler Air Heaters, Condensers, Chillers, Heat Exchangers, or Paper Mill Evaporators
Pulling Capacity: Up to 25 Tons
Stroke: 6.75″ (171.45mm)
Pulling Stroke: 6.00″ (152.40mm)
Weight: Up to 55lbs (25kg)
Item Number |
Requirements |
Stroke |
Pulling Stroke |
Weight |
|---|---|---|---|---|
| CPS15 | 15 Ton @ 10,000 PSI | 6.75″ | 6.00″ | 40 lbs |
| CPS25 | 25 Ton @ 10,000 PSI | 6.75″ | 6.00″ | 55 lbs |
Documentation
Tech Manual
Visual Guide
Videos
Super Collet Tube Puller Demonstration
How to Install Large OD Package
A Faster Way to Pull Tubes
Powerful Grip For Fast Tube Pulling
With the same gripping power of Elliott’s proven spears
Robust & Powerful For Fast Tube Removal
Just insert the collet and quickly remove the tube stub.
Save Hours Of Machine Time
Pull stubs easily without the need to machine the tube ID for knockout.
Protects The Tube Sheet
Don’t risk damaging tube sheets from drilling and/or tube knockout tools.
No spears!
One step operation lowers cost and saves time by avoiding inserting, removing, and breaking spears as you pull.
Safe & Simple for Operators
The Super Collet Tube Puller is equipped with built-in pump control, eye bolts, and deflector shield for easy operator use and safety.
Easy To Use
Eye-bolts for easily connecting to a counterbalance in both horizontal or vertical pulling applications.
One-Man Operation

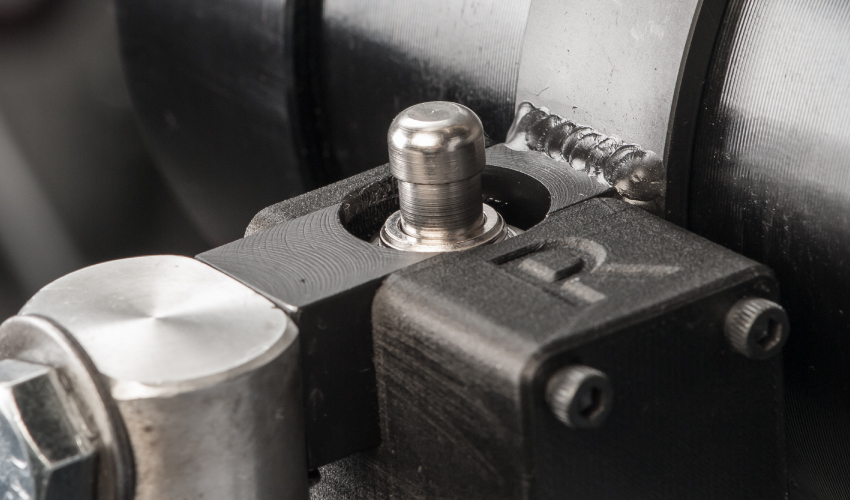

Convenient pump control is built into the handles and works seamlessly with Elliott’s electric hydraulic pumps.
Improves Safety
The deflector shield protects the opposite end of the tube sheet during horizontal pulling applications.
Spares & Accessories
Tube OD |
BWG |
Expansion Range |
Collet |
Draw Bar |
Tie Rod |
Nose Piece |
|---|---|---|---|---|---|---|
| 1/2″ (12.7mm) |
14-15 16-18 19-22 |
0.326″ – 0.418″ (8.28 – 10.62mm) 0.362″ – 0.454″ (9.19 – 11.53mm) 0.408″ – 0.500″ (10.36 – 12.7mm) |
CPC500-14 CPC500-16 CPC500-19 |
CPD500 | CPT500 | CPN500 |
| 5/8″ (15.9mm) |
14-15 16-18 19-22 |
0.451″ – 0.543″ (11.46 – 13.80mm) 0.487″ – 0.579″ (12.37 – 14.71mm) 0.533″ – 0.625″ (13.54 – 15.88mm) |
CPC625-14 CPC625-16 CPC625-19 |
CPD625 | CPT625 | CPN625 |
| 3/4″ (19.05mm) |
12-13 14-15 16-18 19-22 |
0.530″ – 0.622″ (13.46 – 15.80mm) 0.576″ – 0.668″ (14.63 – 16.97mm) 0.612″ – 0.704″ (15.54 – 17.88mm) 0.658″ – 0.750″ (16.71 – 18.97mm) |
CPC750-12 CPC750-14 CPC750-16 CPC750-19 |
CPD750 | CPT750 | CPN750 |
| 7/8″ (22.2mm) |
12-13 14-15 16-18 19-22 |
0.655″ – 0.747″ (16.71 – 19.05mm) 0.701″ – 0.793″ (17.81 – 20.14mm) 0.737″ – 0.829″ (18.72 – 21.06mm) 0.783″ – 0.875″ (19.89 – 22.23mm) |
CPC875-12 CPC875-14 CPC875-16 CPC875-19 |
CPD875 | CPT875 | CPN875 |
| 1″ (25.4mm) |
10-11 12-13 14-15 16-18 19-22 |
0.730″ – 0.822″ (18.54 – 20.88mm) 0.780″ – 0.872″ (19.81 – 22.15mm) 0.826″ – 0.918″ (20.98 – 23.32mm) 0.862″ – 0.954″ (21.90 – 24.23mm) 0.908″ – 1.000″ (23.06 – 25.40mm) |
CPC1000-10 CPC1000-12 CPC1000-14 CPC1000-16 CPC1000-19 |
CPD1000 | CPT1000 | CPN1000 |
| 1-1/8″ (28.58mm) |
10-11 12-13 14-15 16-18 19-22 |
0.855″ – 0.947″ (21.72 – 24.05mm) 0.905″ – 0.997″ (22.99 – 25.32mm) 0.951″ – 1.043″ (24.16 – 26.50mm) 0.987″ – 1.079″ (25.07 – 27.41mm) 1.033″ – 1.125″ (26.24 – 28.58mm) |
CPC1125-10 CPC1125-12 CPC1125-14 CPC1125-16 CPC1125-19 |
CPD1125 | CPT1125 | CPN1125 |
| 1-1/4″ (31.8mm) |
10-11 12-13 14-15 16-18 19-22 |
0.980″ – 1.072″ (24.89 – 27.23mm) 1.030″ – 1.122″ (26.16 – 28.50mm) 1.076″ – 1.168″ (27.33 – 29.67mm) 1.112″ – 1.204″ (28.25 – 30.58mm) 1.158″ – 1.250″ (29.41 – 31.75mm) |
CPC1250-10 CPC1250-12 CPC1250-14 CPC1250-16 CPC1250-19 |
CPD1250 | CPT1250 | CPN1250 |
| 1-3/8″ (34.9mm) |
10-11 12-13 14-15 16-18 19-22 |
1.105″ – 1.197″ (28.07 – 30.40mm) 1.155″ – 1.247″ (29.34 – 31.67mm) 1.201″ – 1.293″ (30.51 – 32.84mm) 1.237″ – 1.329″ (31.42 – 33.76mm) 1.283″ – 1.375″ (32.59 – 34.93mm) |
CPC1375-10 CPC1375-12 CPC1375-14 CPC1375-16 CPC1375-19 |
CPD1375 | CPT1375 | CPN1375 |
| 1-1/2″ (38.1mm) |
10-11 12-13 14-15 16-18 19-22 |
1.230″ – 1.322″ (31.24 – 33.58mm) 1.280″ – 1.372″ (32.51 – 34.85mm) 1.326″ – 1.418″ (33.68 – 36.02mm) 1.362″ – 1.454″ (34.60 – 36.93mm) 1.408″ – 1.500″ (35.76 – 38.10mm) |
CPC1500-10 CPC1500-12 CPC1500-14 CPC1500-16 CPC1500-19 |
CPD1500 | CPT1500 | CPN1500 |
| 2″ (50.8mm) |
10-11 12-13 14-15 16-18 19-22 |
1.730″ – 1.824″ (43.94 – 46.33mm) 1.780″ – 1.871″ (45.21 – 47.52mm) 1.826″ – 1.917″ (46.38 – 48.69mm) 1.862″ – 1.954″ (47.29 – 49.63mm) 1.908″ – 1.986″ (48.46 – 50.44mm) |
CPC2000-10 CPC2000-12 CPC2000-14 CPC2000-16 CPC2000-19 |
CPD2000 | CPT2000 | CPN2000 |
| 2-1/2″ (63.5mm) |
10-11 12-13 14-15 16-18 19-22 |
2.230″ – 2.324″ (56.64 – 59.03mm) 2.280″ – 2.371″ (57.91 – 60.22mm) 2.326″ – 2.417″ (59.08 – 61.39mm) 2.362″ – 2.454″ (59.99 – 62.33mm) 2.408″ – 2.486″ (61.16 – 63.14mm) |
CPC2500-10 CPC2500-12 CPC2500-14 CPC2500-16 CPC2500-19 |
CPD2500 | CPT2500 | CPN2500 |
