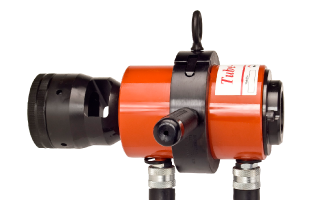

Tube Tugger Specifications
Tube OD Range
0.625” to 1.250”
(15.9 –31.8mm)
Capacity
30 Ton (27.2mt)
Stroke
3.000″ (76.2mm)

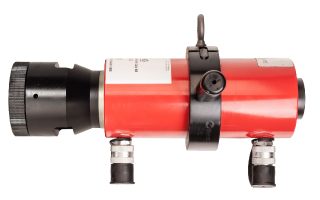

6.000″ (152.4mm)
Diameter
6.500″ (165.1mm)
Lengths
Collapsed: 12.940″ (329.0mm)
Extended: 15.940″ (405.0mm)
Collapsed: 18.000″ (457.0mm)
Extended: 22.000″ (559.0mm)
Length Across Handles
18.250″ (464.0mm)
Tube Tugger Kit
Tube Pulling Hydraulic Cylinder
Suspension Bracket Assembly with Side Handles
Collet Holder Assembly
(2) 15ft. (4.6m) Hydraulic Hose
Release Fork
Nose Piece Adapter
Set of Spanner Wrenches
Spares & Accessories
TCB48-66 Counter Balance
Spears*
Collet Set*
Nose Piece*
Hydraulic Pump (110V, 220V, or Pneumatic)*
* Required to operate the Tube Tugger
